Working principle
　　 The so-called vacuum drying, the material is dried under vacuum conditions, heating and drying. If use vacuum to pump air and humidity, it is to speed up the drying rate.
　　 Note: If using a condenser. Material in the solvent may be recovered through a condenser, as the solvent is water, condensor, energy saving investment.
Features
◎The boiling point of the material under vacuum of the solution. The evaporator heat transfer driving force increases. For a certain amount of heat transfer can save evaporator heat transfer area.
◎Heat source for operation of evaporation may be low pressure steam or waste heat steam.
◎Evaporator heat loss.
◎Before drying, can be disinfected, the drying process without any impurities into the dirt, in line with GMP requirements.
◎It is a static vacuum dryer. It will not damage the body dry materials.
Adapt materials
　　Applies easily decomposed at high temperature, low temperature polymerization and deterioration of heat-sensitive materials dry; are widely used in pharmaceutical, chemical, food, electronics and other industries.
Technical Specifications

Specification Name	YZG-600	YZG-800	YZG-1000	YZG-1400A	FZG-10	FZG-15	FZG-20
Oven internal dimensions	Ф600×976	Ф800×1247	Ф1000×1527	Ф1400×2054	1500×1060×1220	1500×1400×1220	1500×1800×1220
Oven Outer dimensions	1135×810×1024	1700×1045×1335	1693×1190×150	2386×1675×1920	1513×1924×1720	1513×1924×2060	1513×1924×2500
Drying rack layer	4	4	6	8	5	8	12
Interlayer distance	82	82	102	102	122	122	122
Baking tray size	310×600×45	520×410×45	520×410×45	460×640×45	460×640×45	460×640×45	460×640×45
Number of baking tray	4	8	12	32	20	32	48
Drying rack so that the pressure tube	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784	≤0.784
Drying rack temperature	35-150	35-150	35-150	35-150	35-150	35-150	35-150
The degree of vacuum inside the load	-0.09～0.096
In-0.1MPa,The heating temperature110oC Time，Water QiHuaLv	7.2	7.2	7.2	7.2	7.2	7.2	7.2
With a condenser, the vacuum pump models, power	2X-15A 2KW	2X-30A 3KW	2X-30A 3KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-70A 5.5KW	2X-90A 2KW
When not in condenser vacuum pump type and power	SK-0.8 2.2KW	SK-2.7 4KW	SK-3 5.5KW	SK-6 11KW	SK-3 5.5KW	SK-6 11KW	SK-6 11KW
Oven weight	250	600	800	1400	1400	2100	3200

Note: The water ring vacuum pump with a supercharger in conjunction with, in order to improve the degree of vacuum.
Ordering Information
◎Please moisture content of the final moisture content of dried material was based on early when ordering temperature vacuum drying the amount of drying time and other factors to select the appropriate vacuum dryer. The same type of water vapor in a vacuum dryer conducting oil heating electric heating four kinds, respectively. For example, to increase the amount of drying drying rack layer may be increased to please our plant proposed.
◎Instructions in the above-described vacuum drying system in Annex I plant can provide users and installation. Please indicate when ordering.
◎The Division of vacuum drying system can be raised by users of the special requirements to provide design, manufacture and installation.
◎Secretary of equipment to implement quality-three users. All parts, provide long-term, please rest assured users.

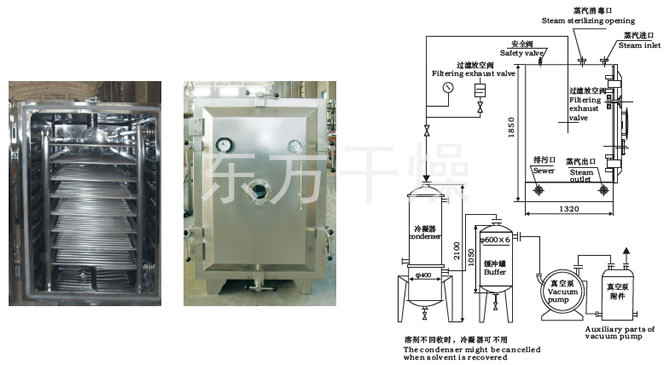

Schematic
